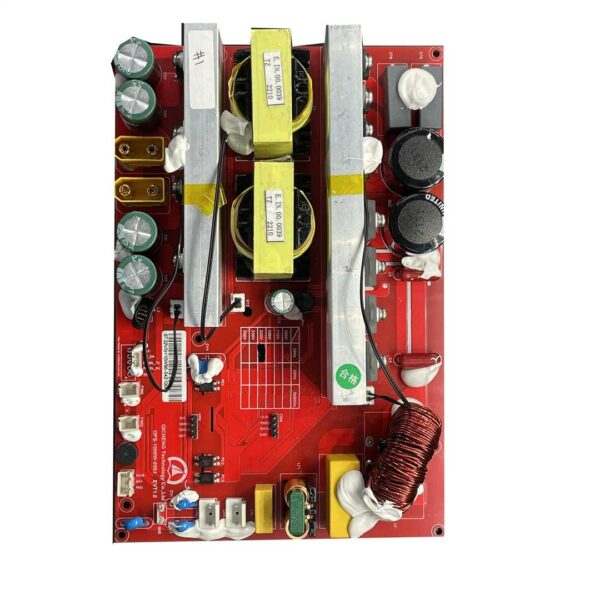

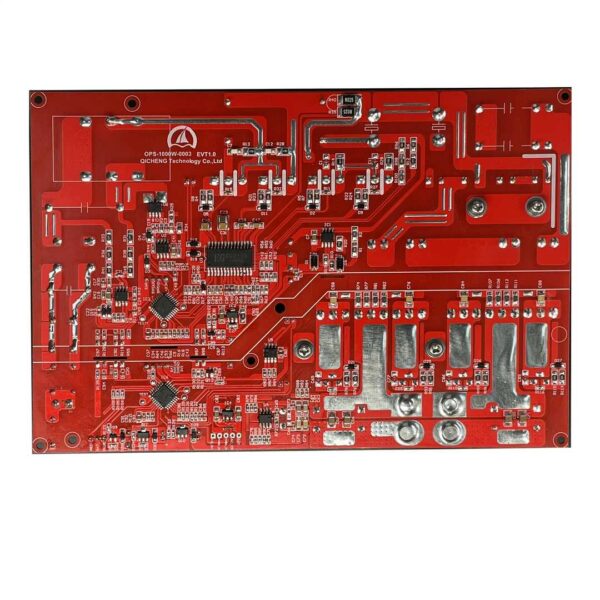

Product Name:Inverter pcb board 1000W Inverter Kit(Inverter,Inverter pcb board,Inverter 1000W)
Series name: C.OPS1000W.I06SOAB.0002 (1000W 220V)
Features: 1000W (DC18V-25.2V) output AC 220V50Hz
Rated voltage: 210 Vac 220 Vac 230 Vac
Rated power: 1000W
Input voltage: 17.5 Vdc 26.5 Vdc
Rated voltage: 18Vdc 25.2Vdc
Rated current: 27A
Work efficiency: 85%-90%
Overload Protection: Shutdown mode auto recovery
Overvoltage Protection: Shutdown mode
Short circuit protection: Shutdown mode
Operating temperature: -20 ~ 60℃
Size: L(210mm)*W(140.0mm)*H(53.0mm)
